Profile bending machine control system
PC400

Convenient creation and saving of bending programs

More Information
Made in Switzerland

Modern and flexible

The PC-based control system for 3-roller bending machines was developed by PBT, and in 1995 it was the first to offer the capability of controlling bending tasks using software. The PC400 is currently the most advanced and flexible control system on the market, and offers countless advantages for small and large series production processes.

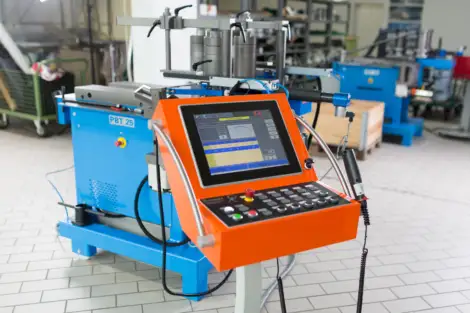

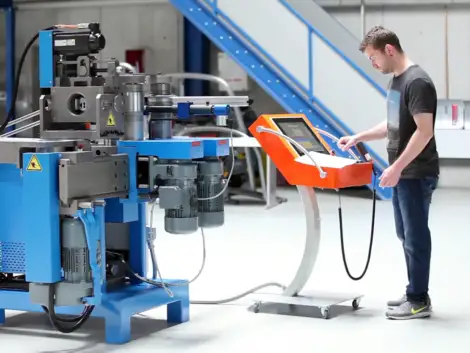

PBT PC400 - Control for profile bending machines PBT Profile bending machine PBT25® - 3D bending device
PBT PC400 - Control for profile bending machines

Intuitive operation

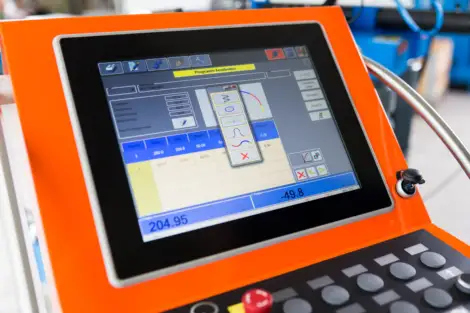

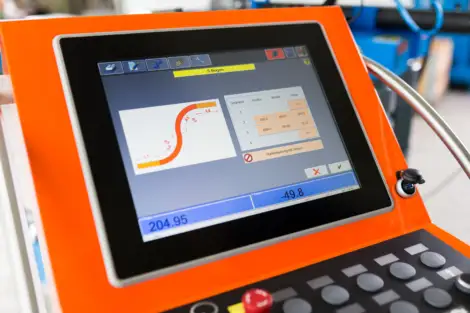

On the basis of a high-performance Windows PC with a state-of-the-art multi-touch display, bending programs can be created, managed and controlled intuitively on the moveable control terminal, without the need for programming skills. Here the graphic display of the programmed workpiece allows visual inspection of the programmed data. The hardware is network-compatible and can easily be integrated into the existing IT infrastructure.

Efficient and economical

The control programs generated allow any number of different segments to be arranged in sequence and bent in one or more passes. Subprograms for the creation of ellipses, handrails for spiral staircases, “Napoleon curves”, S-curves or special shapes are already available as standard.

By means of precise control of the X and Y-axis, perfect transitions are achieved between radii and straight sections. Non-conformances caused by the machine are excluded through the continuous regulation of the axis position during bending, from individual parts to large-scale series production. Unavoidable non-conformances in programmed data, which can result e.g. from different material elasticities, are corrected in the software by entering actual manufactured values – consistent repeat precision and low reject rates are thus ensured.

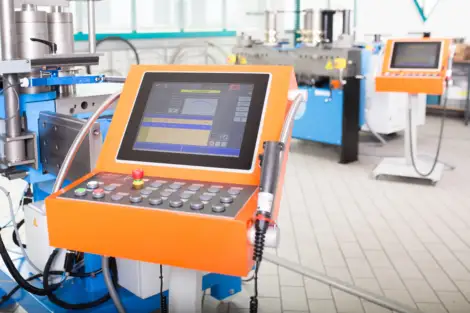

PBT PC400 - Control for profile bending machines

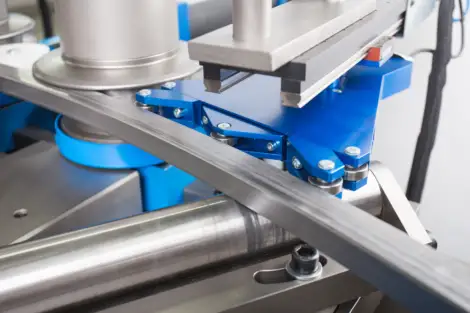

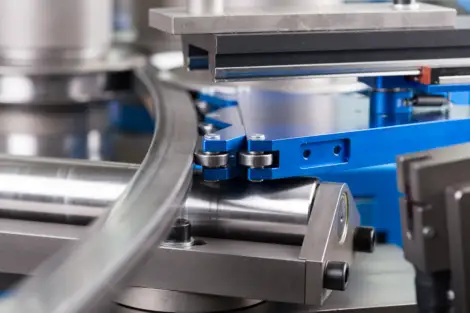

PBT PC400 - Control for profile bending machines PBT Automatic radius measuring system for PBT profile bending machines - Detail PBT Automatic radius measuring system for PBT profile bending machines - Detail

Open and expandable

With the PC400 control system, an open system has been created. Whether integrated into a network or as an individual work station, by means of Siemens S7-1200 the new PC400 also allows the integration of supplementary modules in addition to the control of machines. In this way the PC400 becomes the central control unit for e.g. the 3D bending / turning device, automatic radius measurement system, minimum quantity lubrication MMS, mandrel forward feed or even robots.

Your benefits

  • Performance of the bending process in one or more passes - even where there are different radii within a component
  • Material catalogue / springback diagrams can be created for all profiles – up to and including automatic radius measurement
  • All software tools / subprograms included
  • Assignment and access of PDF documentation (image/text) for creation of workpieces using a corresponding program
  • Optional interface with CAD software for the creation of programs based on design data
  • Workplace-independent creation, management and data backup of programs by means of network integration
  • Direct support from PBT experts thanks to the remote maintenance capability
PBT PC400 - Control for profile bending machines

PBT control systems overview

Manual Tablet Teach-In Tablet350 PC400
Operation / Hardware mobile handheld terminal mobile handheld terminal / Tablet-PC / jointed arm bracket / freely mobile mobile handheld terminal / Tablet-PC / jointed arm bracket / freely mobile movable control panel / 15-Inch multi-touch display / industrial PC
Recommended for low variability of bending forms low variability of bending forms but high quantities high variability of bending forms high variability of bending forms and automated
Time requirement for determining the bending geometry relatively high relatively high low low
Series production following manual setup automated, after teach-in automated, software-controlled automated, software-controlled and can be integrated in automation
Programming / Storage / Processing of the radii and program calculation manual via teach-in / via tablet software-based, number and length unlimited software-based, number and length unlimited
Visual program check - - as a graphic representation as a graphic representation
Radii per bending part 1 1 optional optional
Infeed rate rapid traverse / crawling speed rapid traverse / crawling speed continuous continuous
Additional bending - - possible for 1 segment possible for all segments
Rolling out - - - possible
Transition correction - - - possible
Program documentation - - - as PDF attachment
Program assistants - - spiral coil spiral coil, ellipses, “Napoleon curves”, S-bends, special forms, swimming pool roof, bending left/right
Control of additional options - - - open architecture for customer-specific extensions, e.g. CNC Z-axes, 3-D bending attachment or mandrel forward feed, automatic radius measurement
Remote diagnosis by PBT - - - via Internet connection
Software update - per USB stick per USB stick per USB stick / via Internet connection
Data backup - via USB port via USB port via USB port / network-based
Connection corded WiFi WiFi corded
Operating system - Windows Windows Windows
Network integration - - - possible
Safety emergency stop, inching emergency stop, inching, enabling switch emergency stop, inching, enabling switch emergency stop, inching, enabling switch
optional: Connection for safety laser scanner
Axes X-axis 1/100mm controlled
optional: Y-axis 1/10mm resolution
X-axis 1/100mm controlled
Y-axis 1/10mm controlled
X-axis 1/100mm controlled
Y-axis 1/10mm controlled
X-axis 1/100mm controlled
Y-axis 1/10mm controlled
optional: X-axis with servo hydraulics (PBT25, PBT35)
optional: Y-axis with servo controllers (PBT35)
optional: controlled Z-axes left/right
