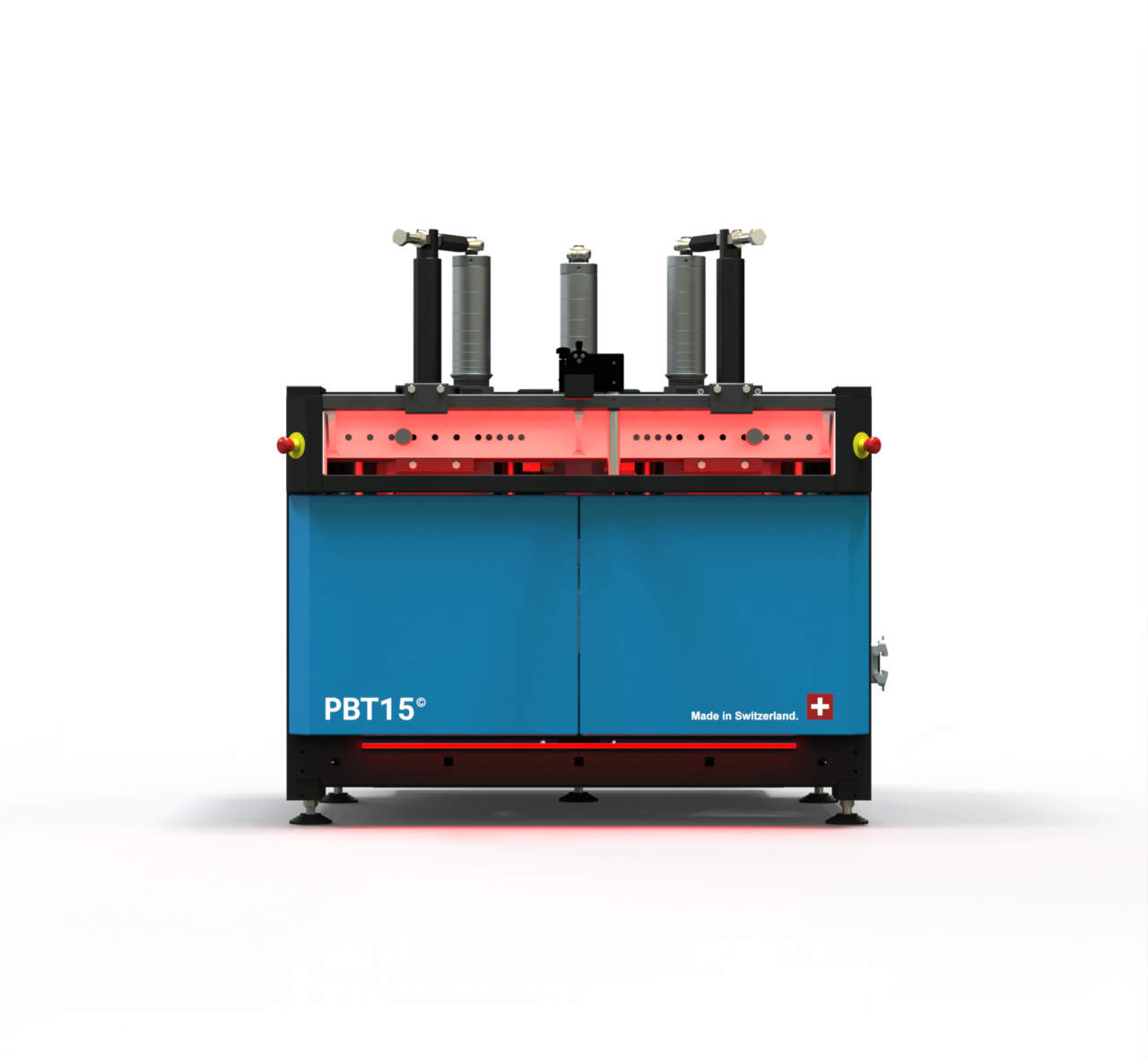

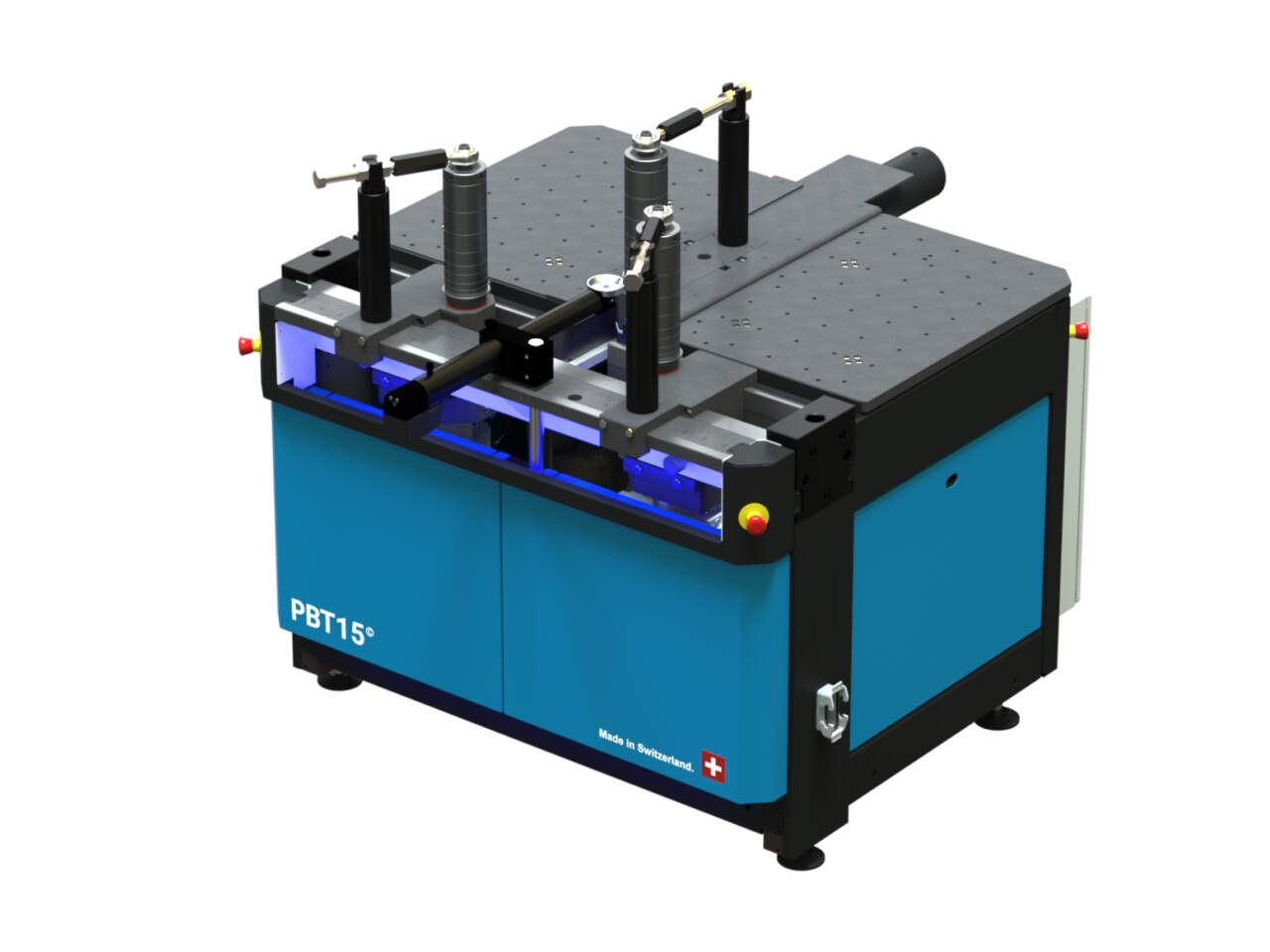

Profile bending machine PBT15®

The PBT15 is the latest model in our product line, featuring a compact design and versatile applications. Configurable with D40 or 65mm shaft diameters, it offers maximum flexibility from tight radii to substantial profiles. Its outstanding price-performance ratio combines top-notch performance with cost-effectiveness.

Discover the brand-new PBT15

Positioned between ARKUS12 and PBT25 compact design
A compact design to save space
Extremely versatile and suitable for various applications
Unbeatable price-performance ratio

Other machines ARKUS12® PBT25® PBT35 Servo Wide® HELIX Servo®

Features

All three rollers driven by powerful, clean, and quiet electric motors, reaching speeds of up to 20 rpm
Optional selection of roller diameters: D40 or D65 mm
Roller support for all three shafts
Adjustable front roller distance:
800-200 mm in 20 mm steps
200-110 mm in 10 mm speps
To achieve smallest radii with seamless transitions!
275 mm high rollers
LED signal light to improve user experience by visualizing the operating status
Bending direction away from the operator
Ergonomic working conditions
High-performance controls
Excellent value for money
Low maintenance costs
Swiss quality

Controls

PC400

Let us advise you

Eric Brüngger
International Sales Manager

Phone: +41 71 633 21 51

Technical specifications of the PBT15®

X-axis power: 15 t
3 individually driven rollers:
Variable speed 0 – 20 rpm
Max. torque per roller: 800 nm
Adjustable front roller distance: 110–800 mm
Tool holder diameter: 40 or 65 mm
Shaft height: 275 mm
Usable height: 250 mm
Stroke (regulated x-axis): 300 mm
X-axis resolution and positioning: 1/100 mm

Hydraulic drive for x-axis: 3 kw
Hydraulic oil volume: 17 liters
Roller drive: 3 x 0.75 kw
Power connection: 3x 400 vac, 20 a
Length: 1,400 mm
Width: 1,450 mm
Height: 1,370 mm
Weight: 1,275 kg

Selectable roller diameters

Choose versatility with our selectable rollers: D40 or D65 mm diameters, 275 mm roller height, and individually supported shafts for unmatched stability and precision. Elevate your equipment's performance!

D40 or D65 mm diameters
275 mm roller height
All rollers individually supported

Smallest radius wihtout any other device

Easily adjust the front roller distance from 800 mm down to 110 mm for seamless transitions and precision when achieving the smallest radii. Expand your possibilities without any additional!

CNC Z-axis

Unlock precision with our CNS Z-axis. Bend simple 3d parts and asymmetrical profiles seamlessly on a flat surface. The servo motor enables easy programming within a generous 120mm stroke, delivering unparalleled flexibility and efficiency.
